Moose

UNMANNED GROUND VEHICLE

Moose UGV is our largest all-terrain unmanned ground vehicle yet. It can handle tough environments with its rugged build, low ground pressure, and 8x8 traction tires, which allow effortless mobility through soft soils, vegetation, thick muds, and steep grades.

With a large payload mounting area and accessible power and communication ports, Moose can be easily customized with sensors, manipulators and other payloads to accommodate a wide variety of robotics applications in mining, agriculture, construction and environmental monitoring.

Features

RUGGED & RELIABLE
Moose is engineered to go where no other UGV can. Its rugged, lightweight steel and aluminum build gives it low ground pressure and traction to tackle all types of difficult terrains including steep grades and soft soils. With optional built-in bilge pumps and an IP rating of 65, Moose is fully amphibious, capable of moving through waterways at speeds up to 5 km/hr.

FULLY EXTENSIBLE

When research changes, so should your hardware. Integrate third-party sensors and components quickly and easily with flexible payload mounting, easy to access power and reconfigurable I/O (Ethernet, USB, WIFI, etc). Mobile robot prototyping has never been faster or easier.

CUSTOMIZABLE

Moose’s onboard PC comes with the open-source Robot Operating System (ROS) preinstalled and configured. Rich documentation, demos and tutorials are provided, along with a 3D simulation model for Gazebo to help you get started quickly and hassle-free.

HIGH PERFORMANCE

Moose’s powerful drive-train is capable of moving 272 kg (600lbs) of payload and can reach speeds up to 30 km/hr on land. With the optional power generator, Moose is capable of operating for up to 6hrs.

Tech Specs

Husky tech specs top
Husky tech specs side
Husky tech specs front

Size and Weight

External Dimensions 2.96 x 1.5 x 1.14 m
(9.7 x 4.9 x 3.74 ft )
Ground Clearance 24 cm
(9.5 in)
Gross Vehicle Weight 1590 kg
(3505 lbs)
Max Payload 513 kg
(1131 lbs)

Speed and Performance

Max Speed

30 km/h
(18.6 mph)

Run Time
(Typical Use)

6 hrs

User Power

12V (3 x 10 Amps), 24V (3 x 10 Amps),
VBAT at 80 Amps

Drivers and APIs

Packaged with ROS Kinetic (includes RViz, Gazebo support), Matlab API available

Accessories

Configure a custom platform. Explore all Accessories.

UR10

Universal Robots

LMS-111 Lidar

SICK

SMART6-L GPS

NovAtel

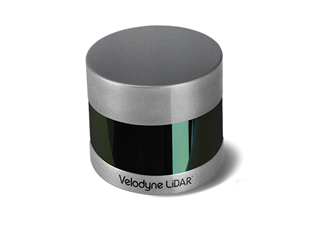

VLP-32C

Velodyne
