Additional Simulation Worlds

In addtion to the default jackal_world.launch file, jackal_gazebo contains three additional launch files:

  • empty_world.launch, which spawns Jackal in a featureless, infinite plane;

  • hrtac_world.launch, which is a scenario from the HRTAC competition; and

  • spawn_jackal.launch, which is intended to be included in any custom world to add a Jackal simulation to it.

Jackal in the HRTAC world

To add a Jackal to any of your own worlds, simply include the spawn_jackal.launch file in your own world’s launch:

<include file="$(find jackal_gazebo)/launch/spawn_jackal.launch">
  <!-- Optionally configure the spawn position -->
  <arg name="x" value="$(arg x)"/>
  <arg name="y" value="$(arg y)"/>
  <arg name="z" value="$(arg z)"/>
  <arg name="yaw" value="$(arg yaw)"/>
</include>

Finally, Clearpath provides an additional suite of simulation environments that can be downloaded separately and used with Jackal, as described below.

Clearpath Gazebo Worlds

The Clearpath Gazebo Worlds collection contains 4 different simulation worlds, representative of different environments our robots are designed to operate in:

  • Inspection World: a hilly outdoor world with water and a cave

  • Agriculture World: a flat outdoor world with a barn, fences, and solar farm

  • Office World: a flat indoor world with enclosed rooms and furniture

  • Construction World: office world, under construction with small piles of debris and partial walls

Jackal is supported in all four environments.

Installation

To download the Clearpath Gazebo Worlds, clone the repository from github into the same workspace as your Jackal:

cd ~/catkin_ws/src
git clone https://github.com/clearpathrobotics/cpr_gazebo.git

Before you can build the package, make sure to install dependencies. Because Clearpath Gazebo Worlds depends on all of our robots’ simulation packages, and some of these are currently only available as source code, installing dependencies with rosdep install --from-paths [...] will likely fail.

All four simulation environments need the gazebo_ros package. The Inspection World also needs the uuv_gazebo_worlds package, which can be installed by running

sudo apt-get install ros-$ROS_DISTRO-uuv-gazebo-worlds

Once the dependencies are installed, you can build the package:

cd ~/catkin_ws
catkin_make
source devel/setup.bash

Running the Inspection Simulation

Inspection World is a hilly, outdoor world that includes a water feature, bridge, pipeline, small cave/mine, and a small solar farm. It is intended to simulate a variety of missions, including pipeline inspection, cave/underground navigation, and localization on non-planar terrain.

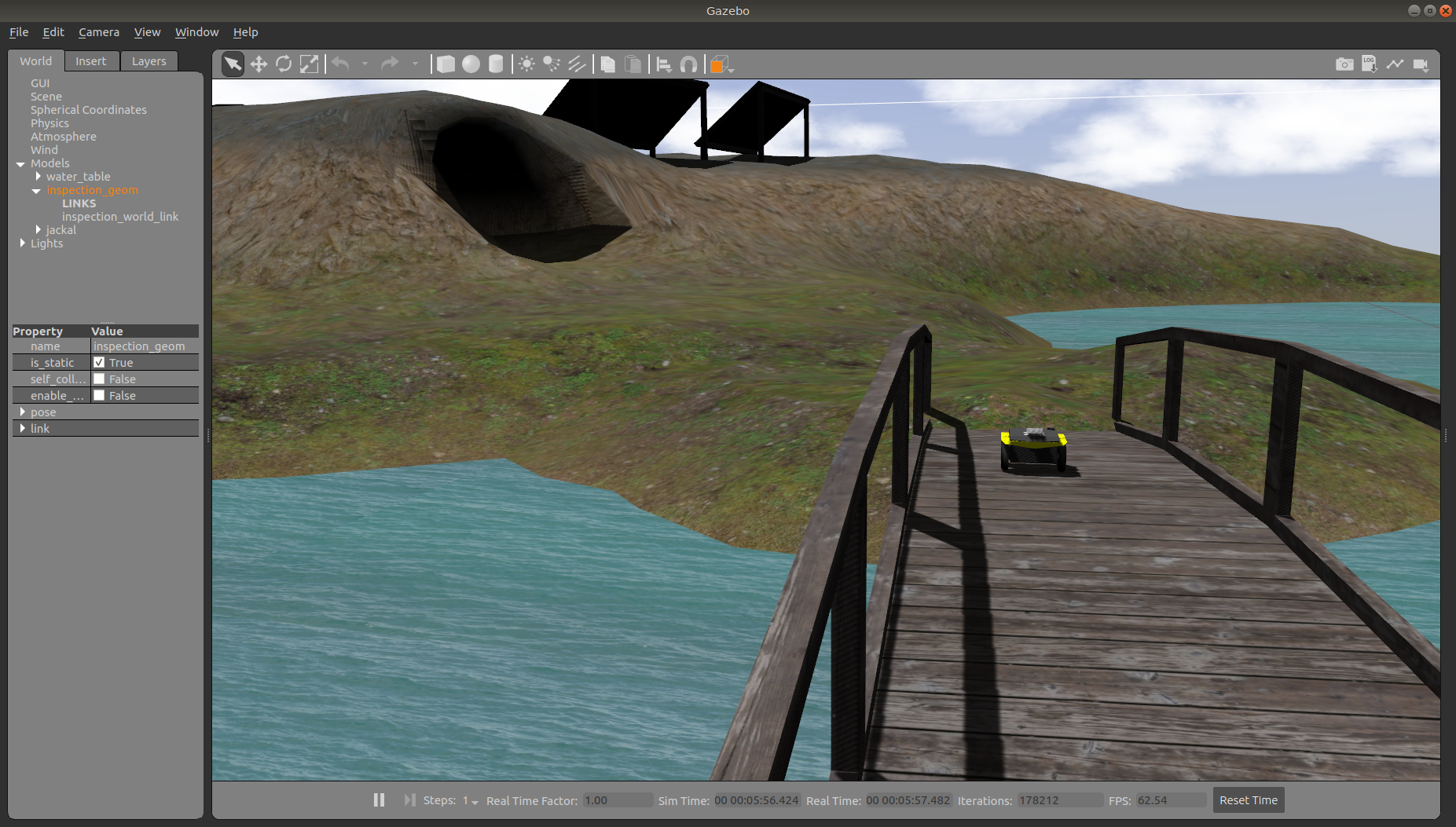

Jackal driving over the bridge in the inspection world

To launch the inspection simulation, run

roslaunch cpr_inspection_gazebo inspection_world.launch platform:=jackal

To customize Jackal’s payload, for example to add additional sensors, see Customizing Jackal’s Payload.

Once the simulation is running you can use rviz and other tools as described in Simulating Jackal and Navigating with Jackal to control and monitor the robot. For example, below we can see Jackal exploring the cave:

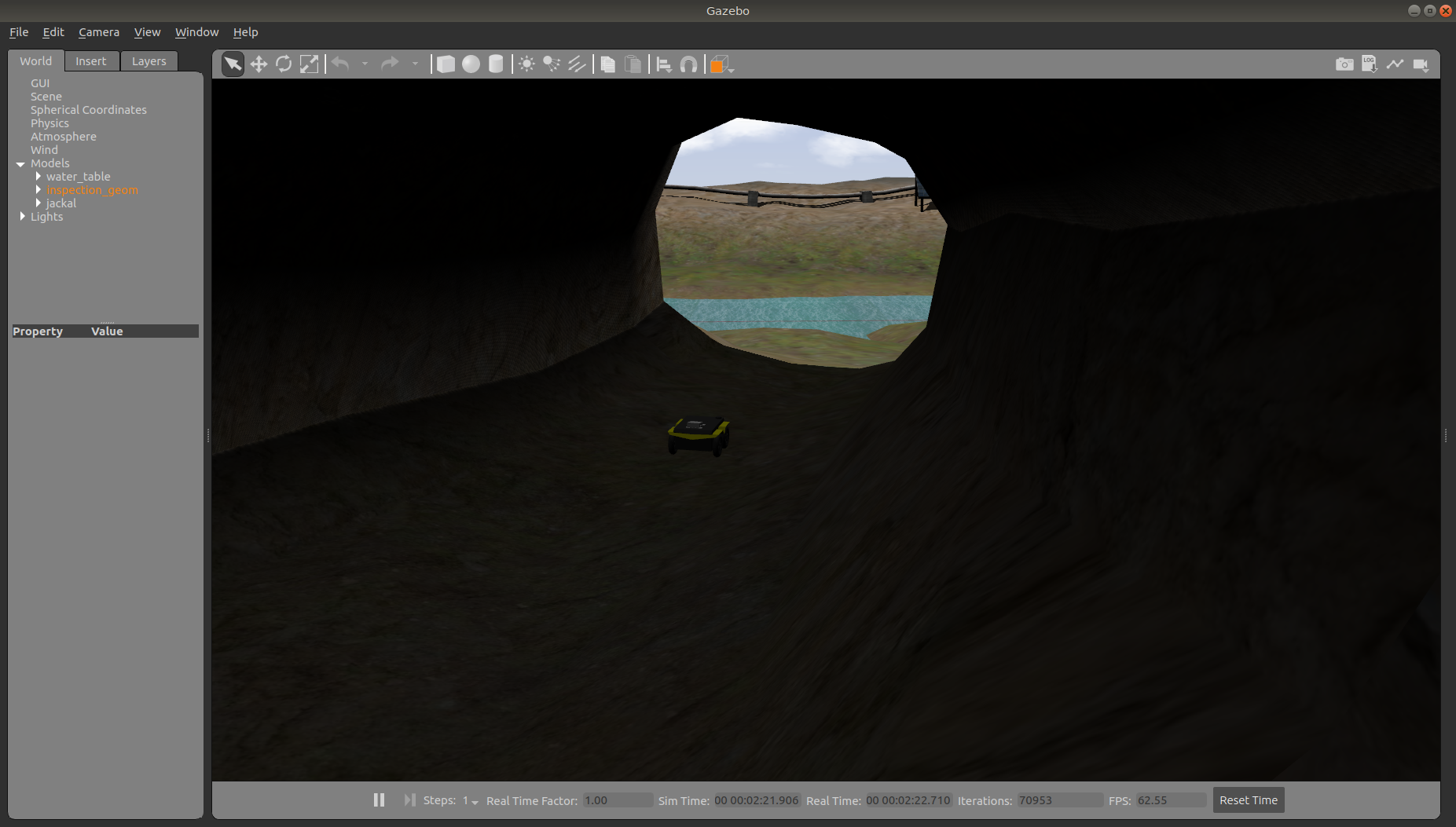

Jackal exploring the cave

and Jackal’s perception of the inside of the cave as a 3D pointcloud in rviz:

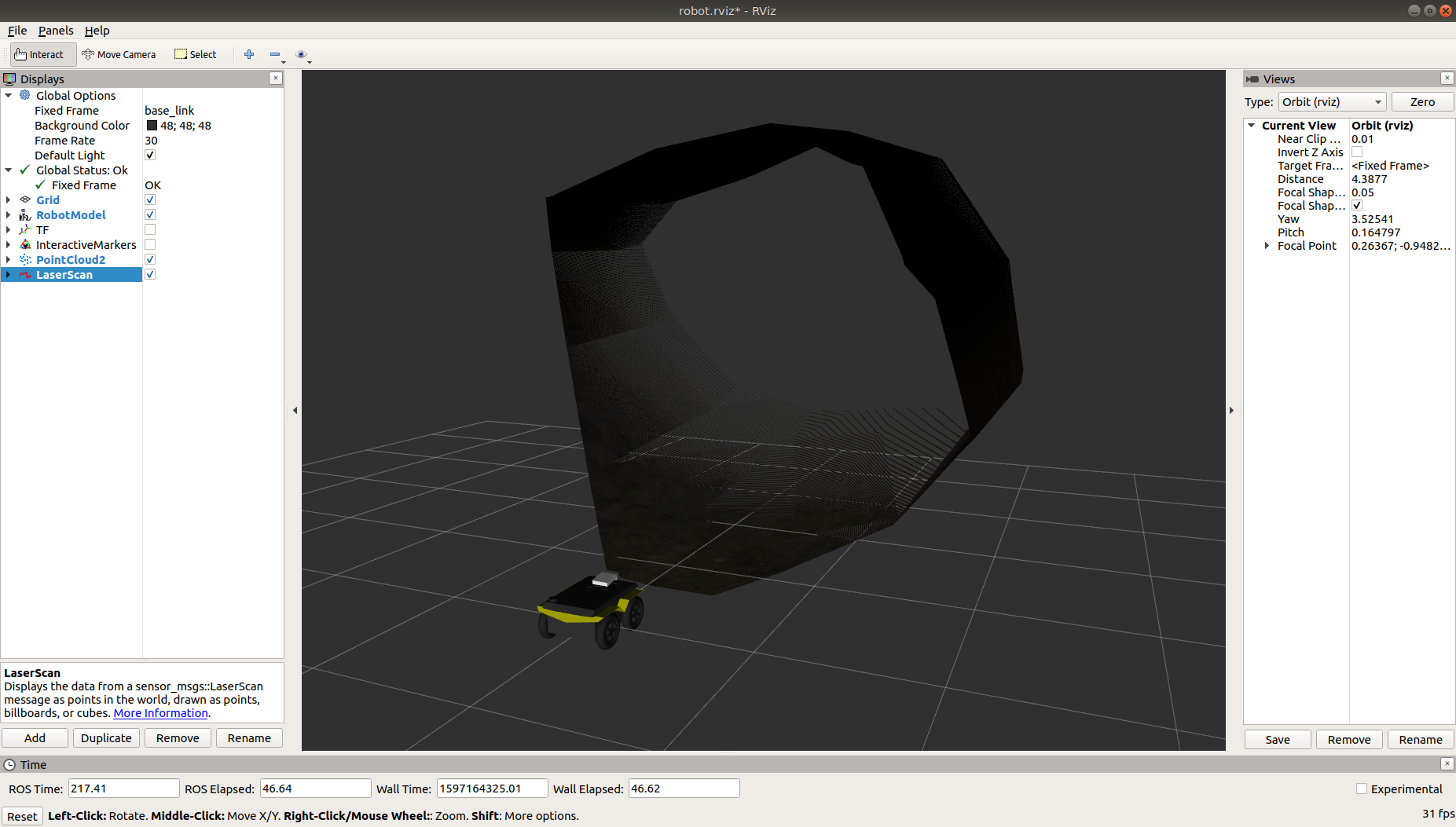

Jackal in rviz exploring the cave

You can see the complete layout of the Inspection World below:

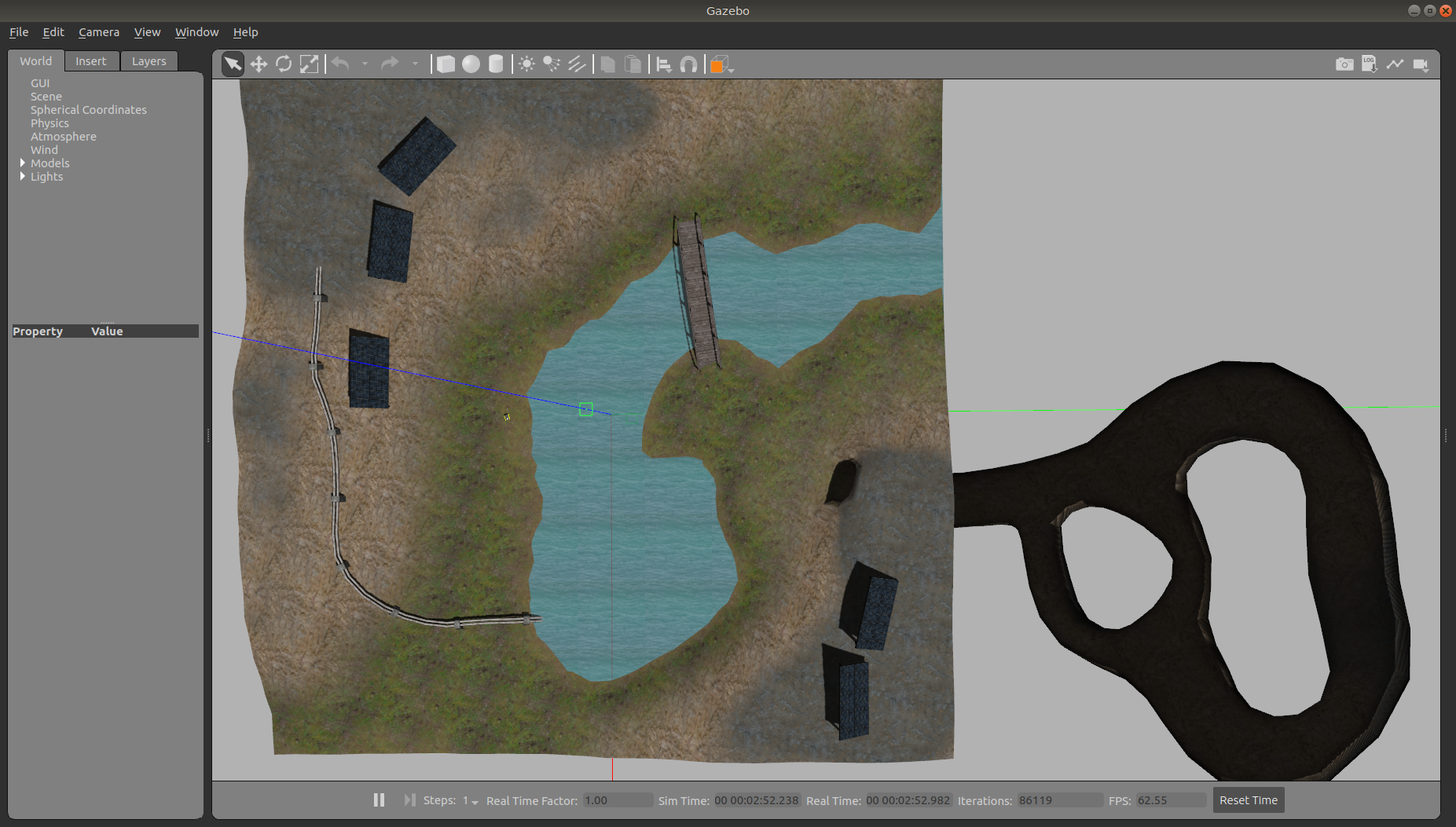

Inspection World

Running the Agriculture Simulation

Agriculture World is a flat, mixed indoor/outdoor world that include a large barn, open fields surrounded by fences, and a large solar farm. It is intended to simulate missions such as solar panel inspection and area coverage.

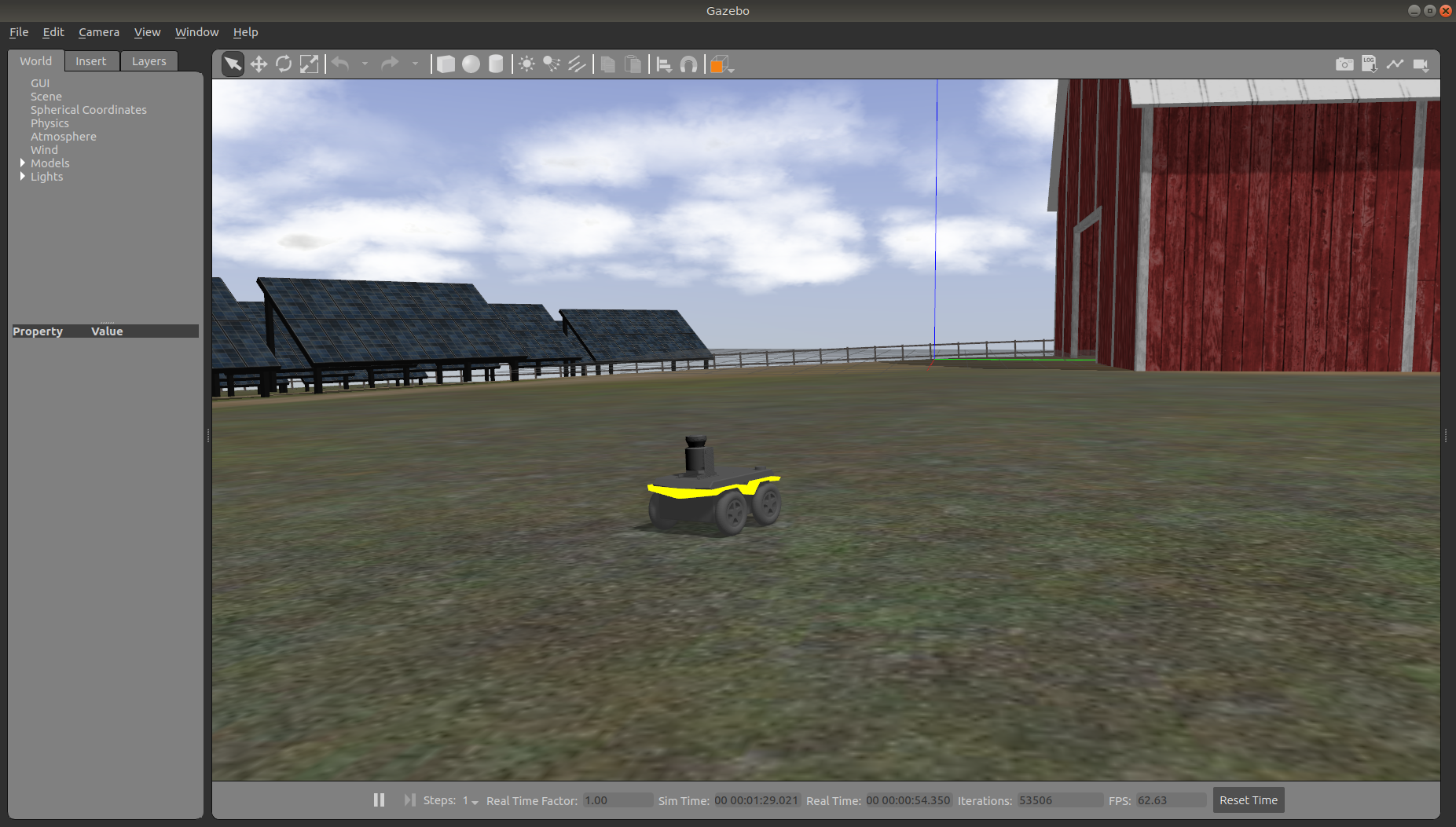

Jackal in the agriculture world

To launch the agriculture simulation, run

roslaunch cpr_agriculture_gazebo agriculture_world.launch platform:=jackal

To customize Jackal’s payload, for example to add additional sensors, see Customizing Jackal’s Payload.

Once the simulation is running you can use rviz and other tools as described in Simulating Jackal and Navigating with Jackal to control and monitor the robot.

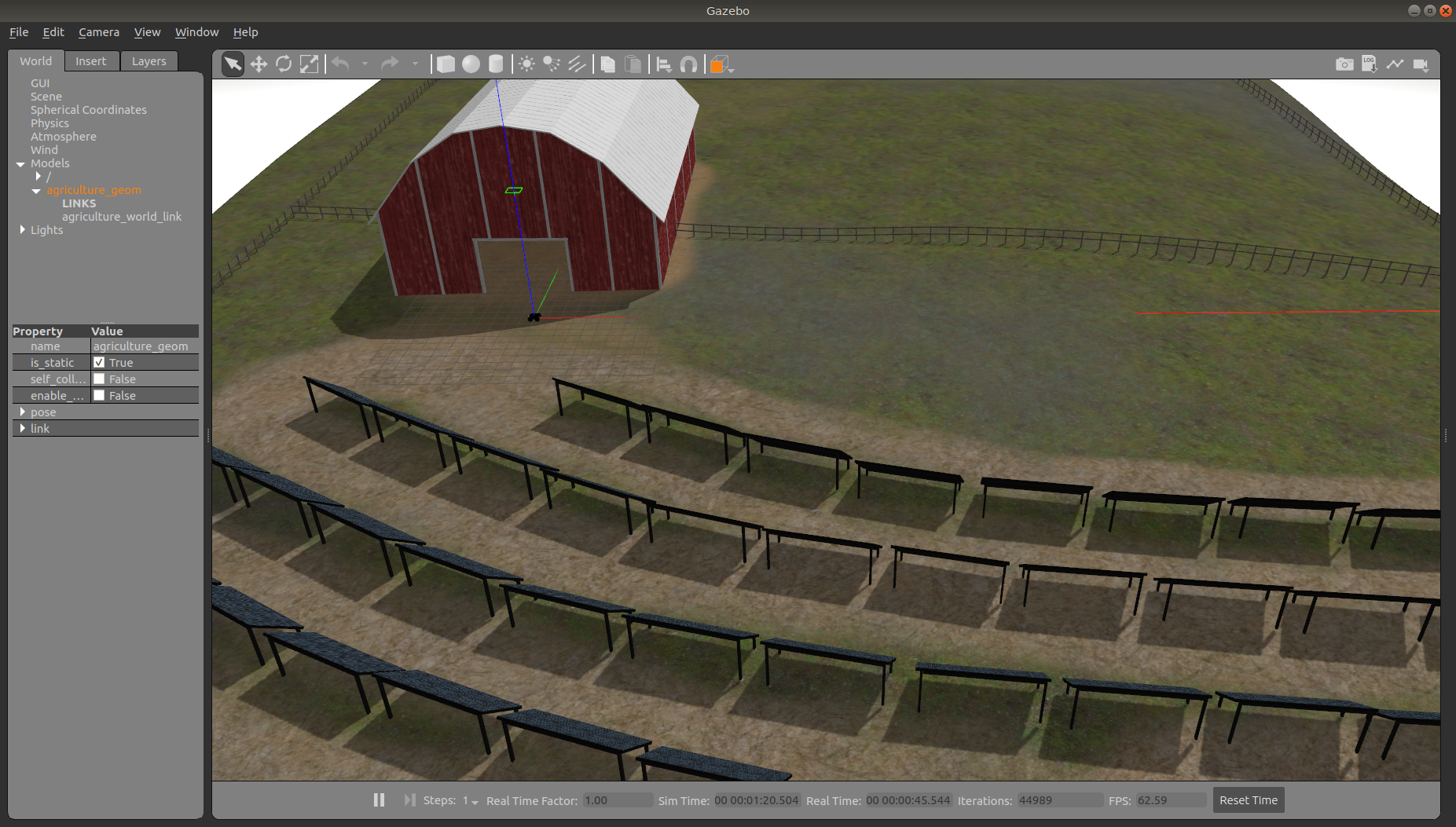

Agriculture World

Running the Office Simulation

Office World is a small indoor environment representing a commercial office space. It features several large, open areas with furniture, as well as a narrow hallway with smaller offices and meeting rooms. It is intended to simulate missions in commercial spaces, such as facilitating deliveries, security monitoring, and inspecting equipment.

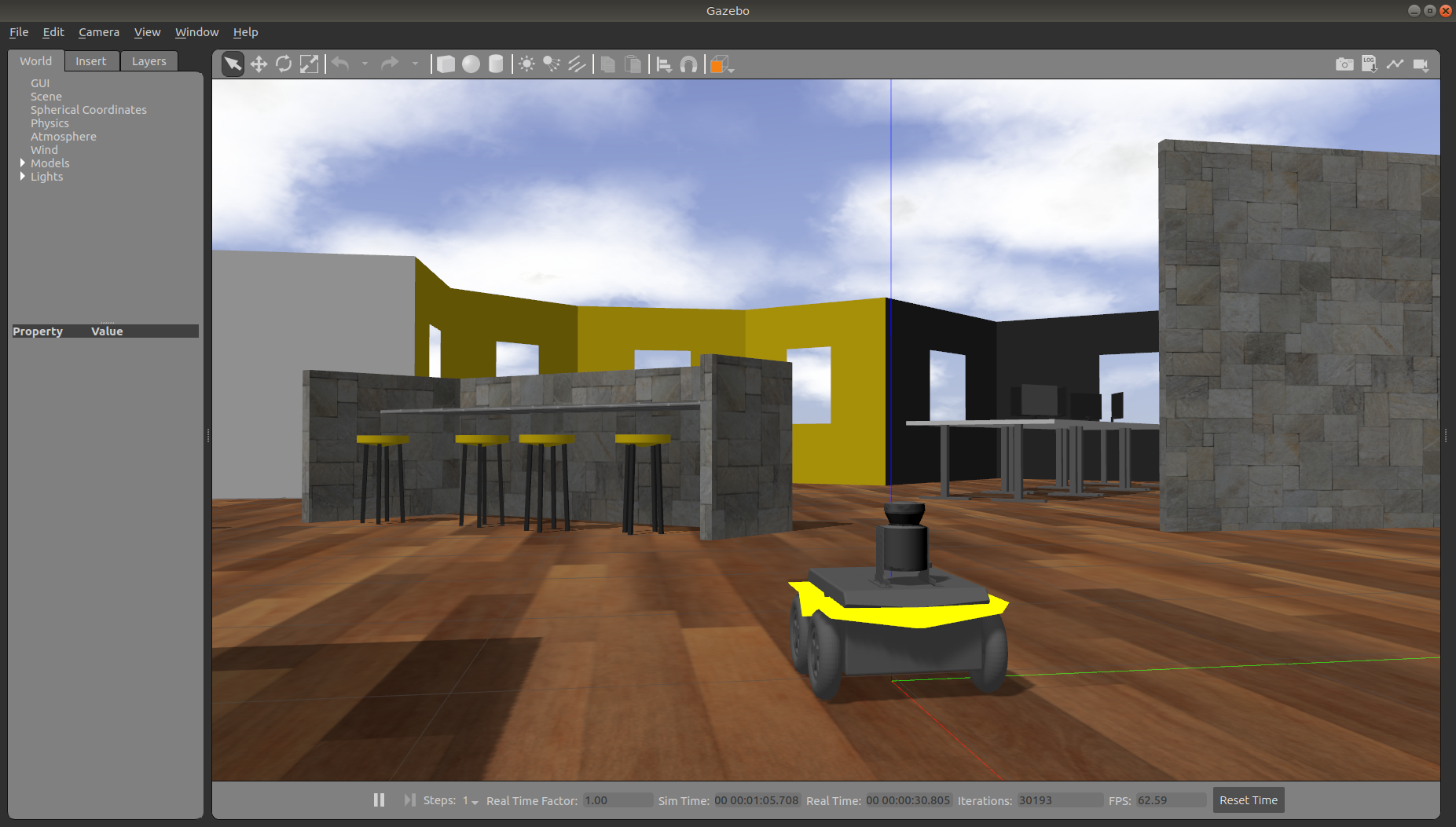

Jackal in the Office World

To launch Office World with a Jackal, run the following command:

roslaunch cpr_office_gazebo office_world.launch platform:=jackal

To customize Jackal’s payload, for example to add additional sensors, see Customizing Jackal’s Payload.

Once the simulation is running you can use rviz and other tools as described in Simulating Jackal and Navigating with Jackal to control and monitor the robot. For example, below we can see the gmapping_demo from jackal_navigation being used to build a map of the office world:

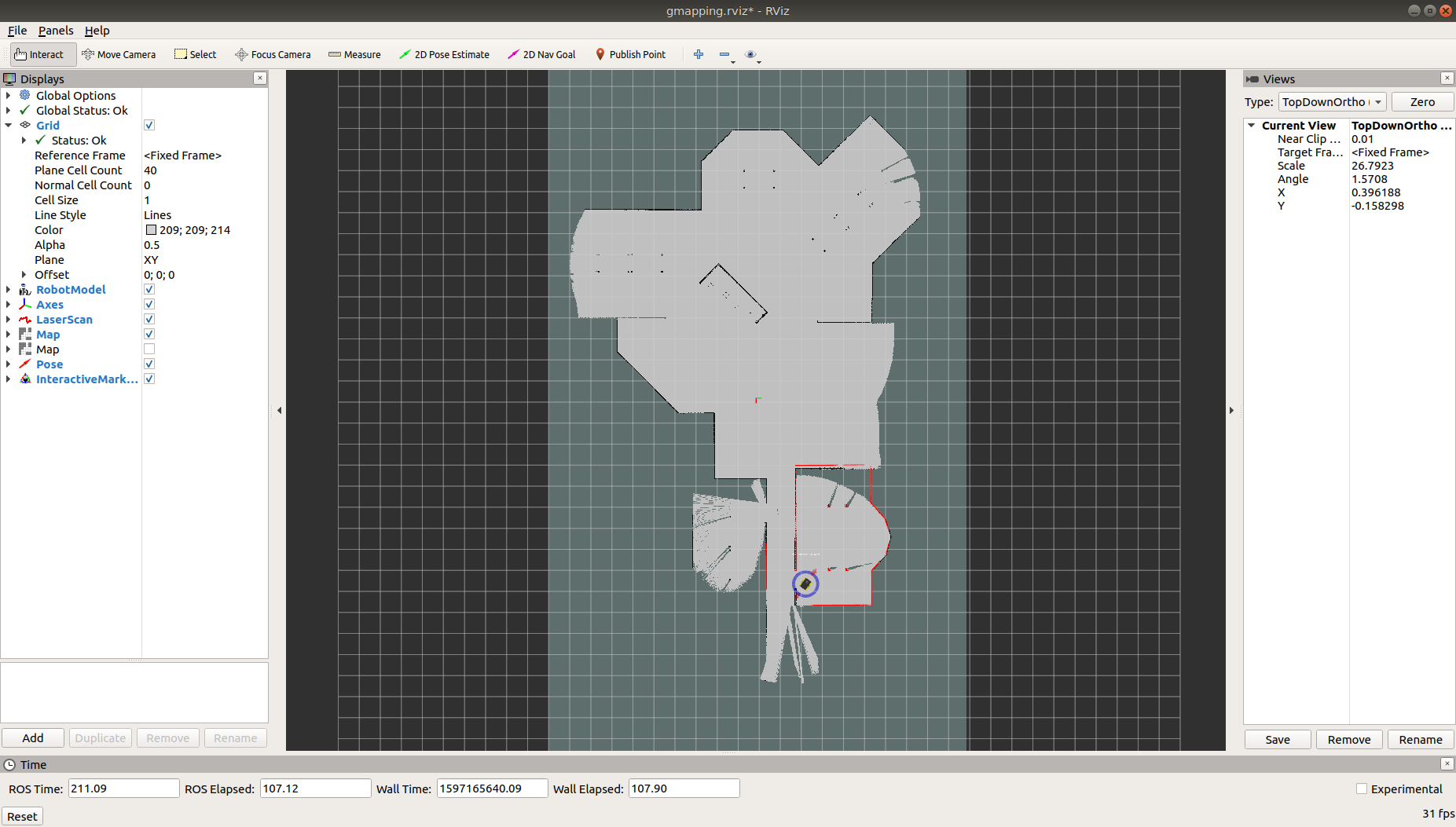

Jackal building a map of the office with gmapping

You can see the complete layout of the office world below:

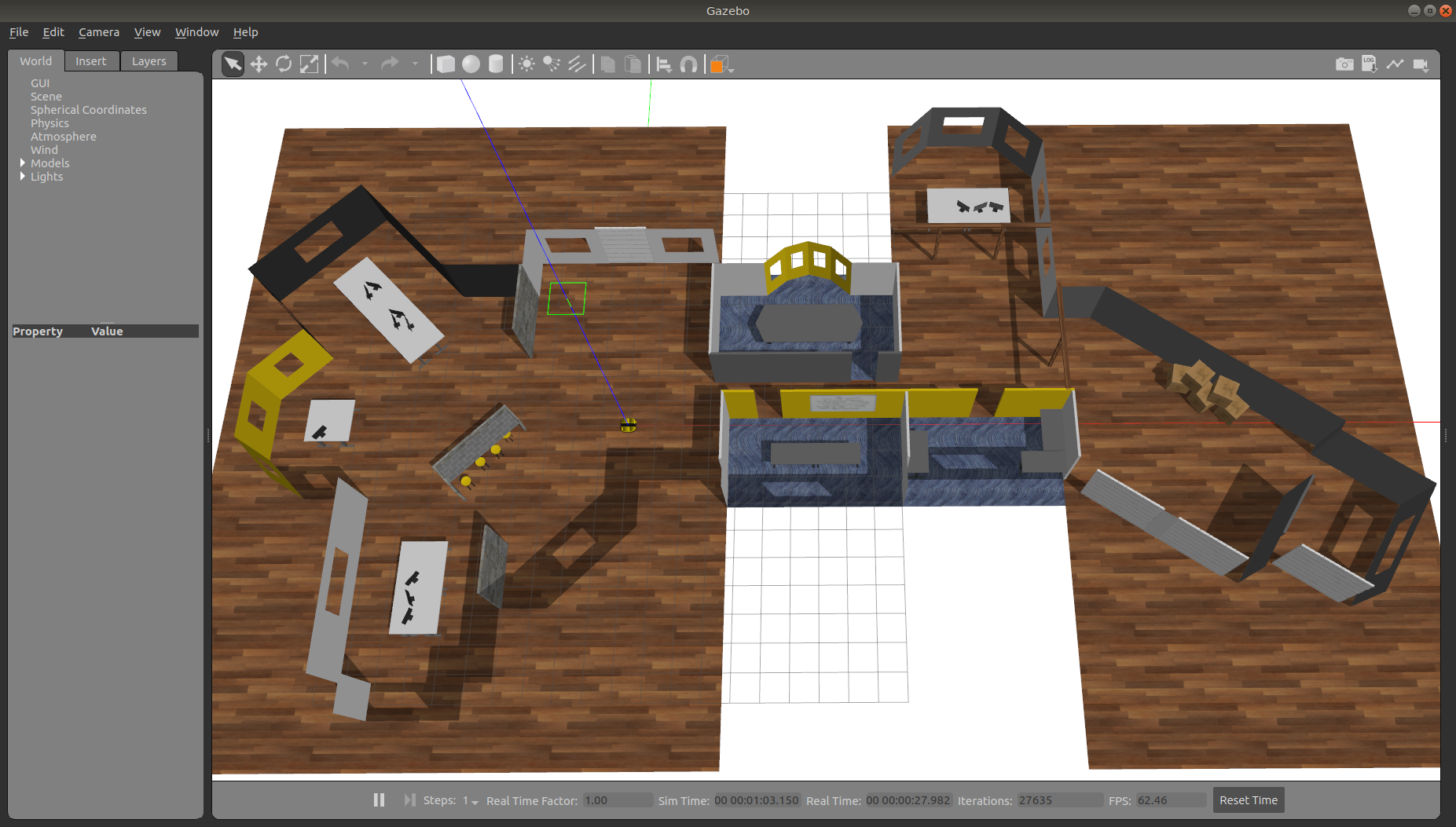

Office World

Running the Construction Simulation

Construction World is the same basic layout as Office World, representing the same office space under construction/rennovation. It is an indoor environment with small hills of debris/rubble, partial walls, and piles of construction supplies. It is designed to simulate missions in any sort of construction site.

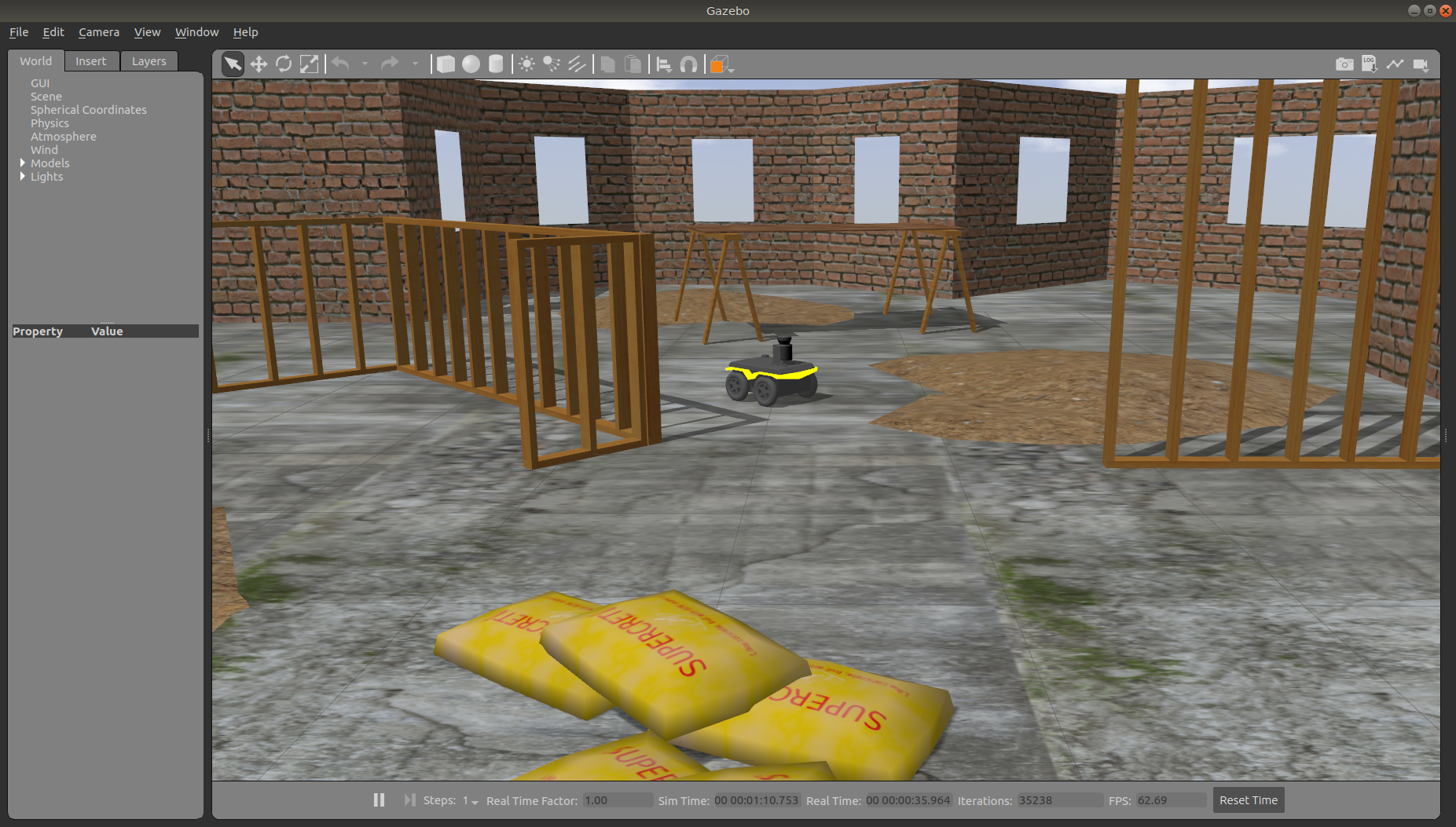

Jackal in the Construction World

To launch Construction World with a Jackal, run the following command:

roslaunch cpr_office_gazebo office_construction_world.launch platform:=jackal

To customize Jackal’s payload, for example to add additional sensors, see Customizing Jackal’s Payload.

Once the simulation is running you can use rviz and other tools as described in Simulating Jackal and Navigating with Jackal to control and monitor the robot.

You can see the complete layout of the office below:

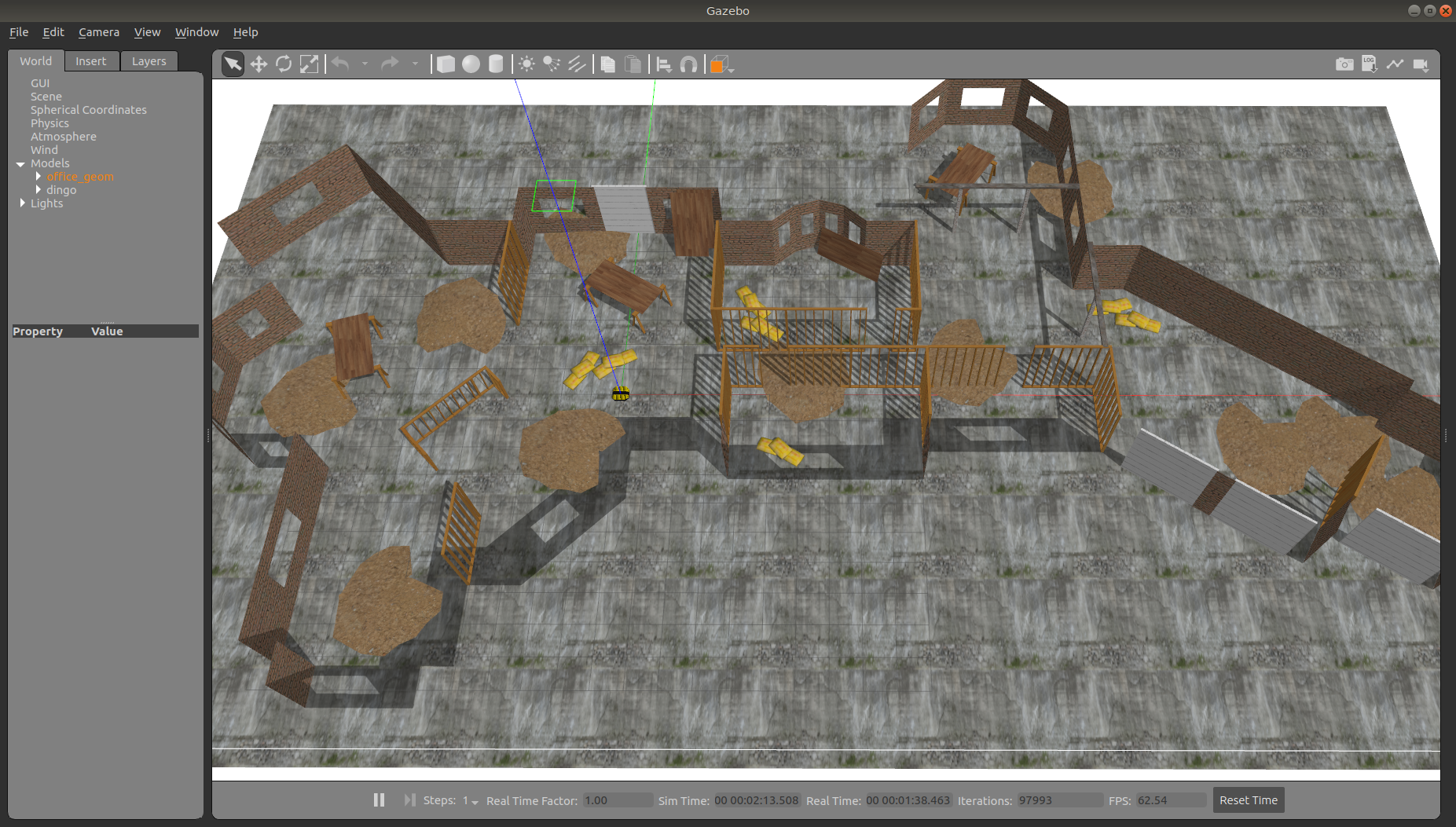

The layout of Construction World

Customizing Jackal’s Payload

To customize Jackal’s payload you must use the environment variables described in jackal_description Package. For example, to equip Jackal with a Sick LMS-1xx lidar, as pictured in several of the images above, run

export JACKAL_LASER=1

before launching the simulation world.

You can also add additional sensors by creating a customized URDF and setting the JACKAL_URDF_EXTRAS environment variable to point to it.

For example, let’s suppose you want to equip Jackal with an Intel RealSense D435 camera. First, install the realsense2_camera and realsense2_description packages, along with the gazebo plugins:

sudo apt-get install ros-$ROS_DISTRO-realsense2-camera ros-$ROS_DISTRO-realsense2-description ros-$ROS_DISTRO-gazebo-plugins

Then create your customized URDF file, for example $HOME/Desktop/realsense.urdf.xacro. Put the following in it:

<?xml version="1.0"?>
<robot xmlns:xacro="http://ros.org/wiki/xacro">

  <link name="front_realsense" />

  <!--
    The gazebo plugin aligns the depth data with the Z axis, with X=left and Y=up
    ROS expects the depth data along the X axis, with Y=left and Z=up
    This link only exists to give the gazebo plugin the correctly-oriented frame
  -->
  <link name="front_realsense_gazebo" />
  <joint name="front_realsense_gazebo_joint" type="fixed">
    <parent link="front_realsense"/>
    <child link="front_realsense_gazebo"/>
    <origin xyz="0.0 0 0" rpy="-1.5707963267948966 0 -1.5707963267948966"/>
  </joint>

  <gazebo reference="front_realsense">
    <turnGravityOff>true</turnGravityOff>
    <sensor type="depth" name="front_realsense_depth">
      <update_rate>30</update_rate>
      <camera>
        <!-- 75x65 degree FOV for the depth sensor -->
        <horizontal_fov>1.5184351666666667</horizontal_fov>
        <vertical_fov>1.0122901111111111</vertical_fov>

        <image>
          <width>640</width>
          <height>480</height>
          <format>RGB8</format>
        </image>
        <clip>
          <!-- give the color sensor a maximum range of 50m so that the simulation renders nicely -->
          <near>0.01</near>
          <far>50.0</far>
        </clip>
      </camera>
      <plugin name="kinect_controller" filename="libgazebo_ros_openni_kinect.so">
        <baseline>0.2</baseline>
        <alwaysOn>true</alwaysOn>
        <updateRate>30</updateRate>
        <cameraName>realsense</cameraName>
        <imageTopicName>color/image_raw</imageTopicName>
        <cameraInfoTopicName>color/camera_info</cameraInfoTopicName>
        <depthImageTopicName>depth/image_rect_raw</depthImageTopicName>
        <depthImageInfoTopicName>depth/camera_info</depthImageInfoTopicName>
        <pointCloudTopicName>depth/color/points</pointCloudTopicName>
        <frameName>front_realsense_gazebo</frameName>
        <pointCloudCutoff>0.105</pointCloudCutoff>
        <pointCloudCutoffMax>8.0</pointCloudCutoffMax>
        <distortionK1>0.00000001</distortionK1>
        <distortionK2>0.00000001</distortionK2>
        <distortionK3>0.00000001</distortionK3>
        <distortionT1>0.00000001</distortionT1>
        <distortionT2>0.00000001</distortionT2>
        <CxPrime>0</CxPrime>
        <Cx>0</Cx>
        <Cy>0</Cy>
        <focalLength>0</focalLength>
        <hackBaseline>0</hackBaseline>
      </plugin>
    </sensor>
  </gazebo>

  <link name="front_realsense_lens">
    <visual>
      <origin xyz="0.02 0 0" rpy="${pi/2} 0 ${pi/2}" />
      <geometry>
        <mesh filename="package://realsense2_description/meshes/d435.dae" />
      </geometry>
      <material name="white" />
    </visual>
  </link>

  <joint type="fixed" name="front_realsense_lens_joint">
    <!-- Offset the camera 5cm forwards and 1cm up -->
    <origin xyz="0.05 0 0.01" rpy="0 0 0" />
    <parent link="front_mount" />
    <child link="front_realsense_lens" />
  </joint>
  <joint type="fixed" name="front_realsense_joint">
    <origin xyz="0.025 0 0" rpy="0 0 0" />
    <parent link="front_realsense_lens" />
    <child link="front_realsense" />
  </joint>
</robot>

This file defines the additional links for adding a RealSense camera to the robot, as well as configuring the openni_kinect plugin for Gazebo to simulate data from a depth camera. The camera itself will be connected to the Jackal’s front_mount link, offset 5cm towards the front of the robot.

Now, set the JACKAL_URDF_EXTRAS environment variable and try viewing the Jackal model:

export JACKAL_URDF_EXTRAS=$HOME/Desktop/realsense.urdf.xacro
roslaunch jackal_viz view_model.launch

You should see the Jackal model in rviz, with the RealSense camera mounted to it:

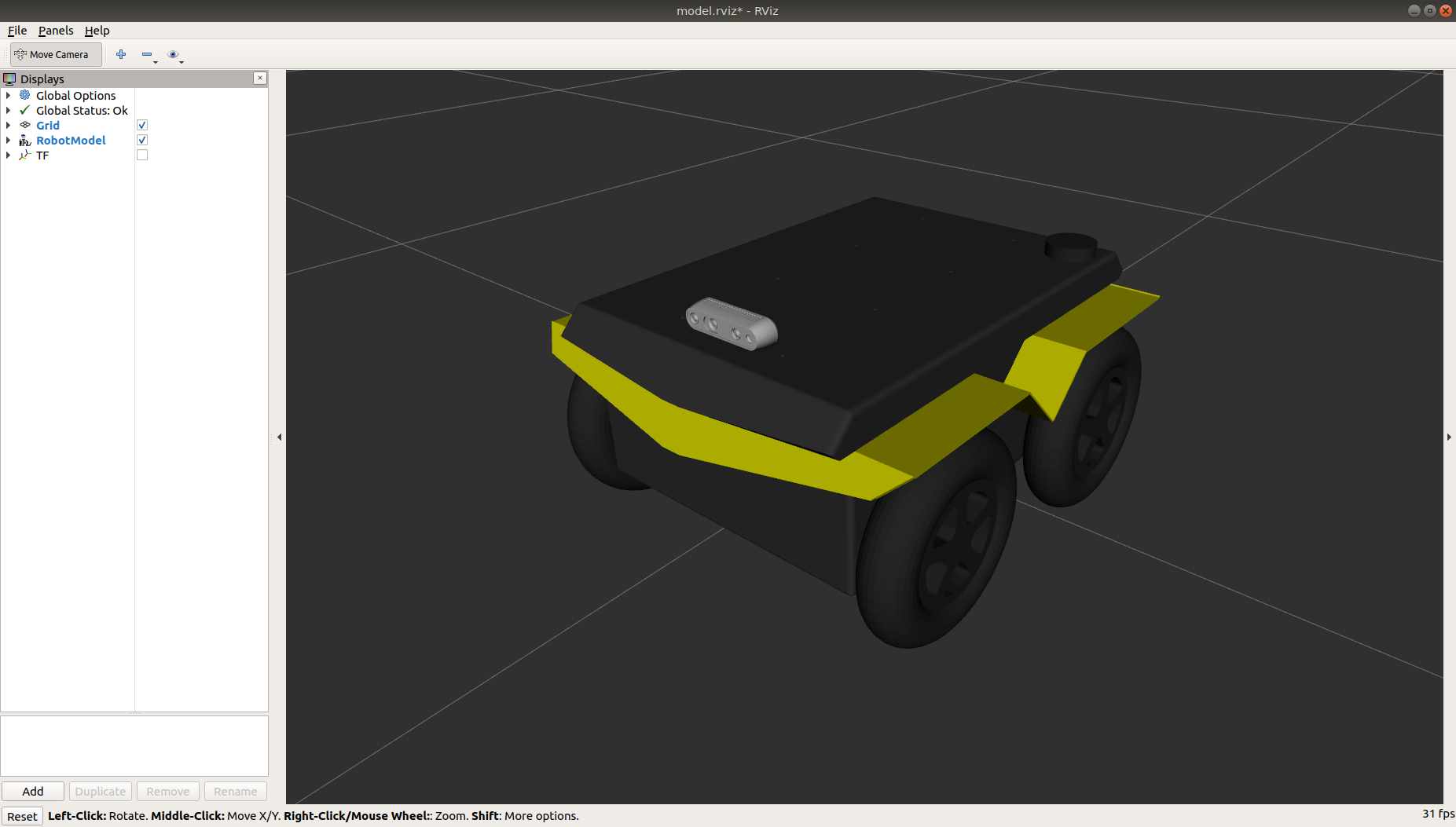

Jackal with a RealSense D435 connected to it

To launch the customized Jackal in any of the new simulation environments, similarly run:

export JACKAL_URDF_EXTRAS=$HOME/Desktop/realsense.urdf.xacro
roslaunch cpr_office_gazebo office_world.launch platform:=jackal

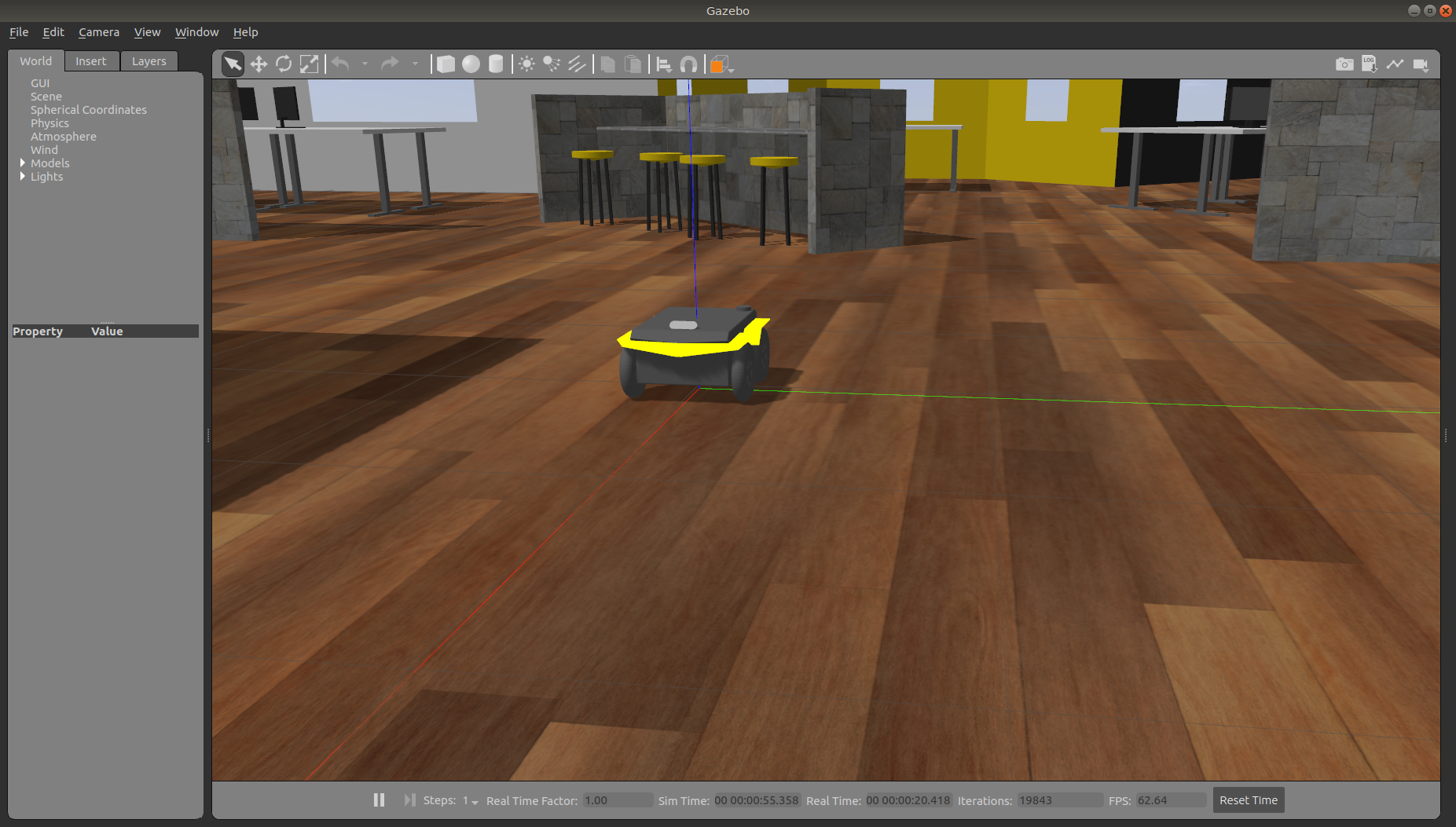

You should see Jackal spawn in the office world with the RealSense camera:

_images/jackal_office_realsense.png

You can view the sensor data from the RealSense camera by running

roslaunch jackal_viz view_robot.launch

and adding the camera & pointcloud from the /realsense/color/image_raw and /realsense/depth/color/points topics:

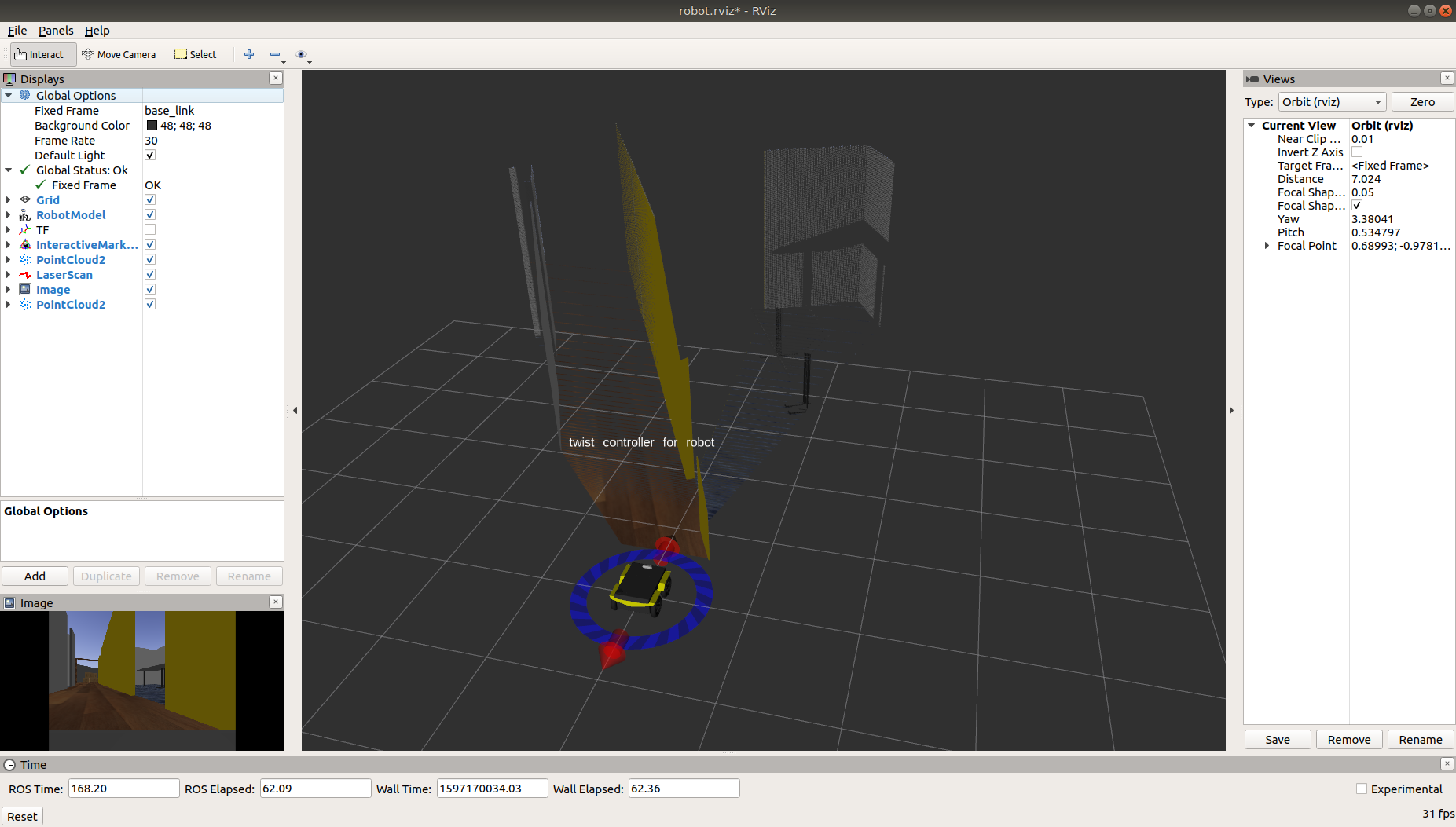

Jackal with a RealSense in rviz showing pointcloud and RGB topics
