Grizzly

ROBOTIC UTILITY VEHICLE

Grizzly is a large all-terrain robotic utility vehicle that offers the performance of a tractor and the precision of an industrial robot. This all-electric workhorse has a maximum continuous drawbar force of 1400 lbf and a payload capacity of 600kg.

Grizzly is built for the most demanding outdoor environments, making it ideal for mining, military and agricultural research. It interfaces with a variety of payloads, including single-point hitch implements as well as all of Clearpath’s sensing, computing and manipulator packages.

Features

TOW CAPACITY

Grizzly is an industry-leading robot workhorse.  With a maximum continuous drawbar pull of 1400 lbf, Grizzly is well equipped to tow massive payloads and industry-standard implements.  A high-torque upgrade is available for even more aggressive tow performance.

PRECISION CONTROL

Grizzly has four independently driven wheels, each with high-resolution (2500 counts per revolution) encoders and finely tuned closed-loop control.  The result is precise linear position control even at low speeds.

PASSIVE SUSPENSION

Grizzly employs a passive suspension system to traverse challenging terrain while always maintaining 4-wheel ground contact and traction.  With passive 16-degree front axle articulation, Grizzly can easily overcome positive and negative obstacles.

POWER PACKED

Grizzly comes standard with a 200 Ah, 48V sealed lead acid battery pack.  An onboard 5V, 12V, 24V and 48V, independently fused user power interface can easily supply large power-hungry payloads like manipulators and agricultural implements for hours.  A generator upgrade can be added for more demanding needs.

COMPATIBLE IMPLEMENTS

With a detachable front bullbar, and a single-point Class 1 hitch at the rear, Grizzly is factory compatible with a wide range of standard utility vehicle and tractor implements.  It also has a modular interface for connecting with a wide range of more high-tech robot accessories.

Tech Specs

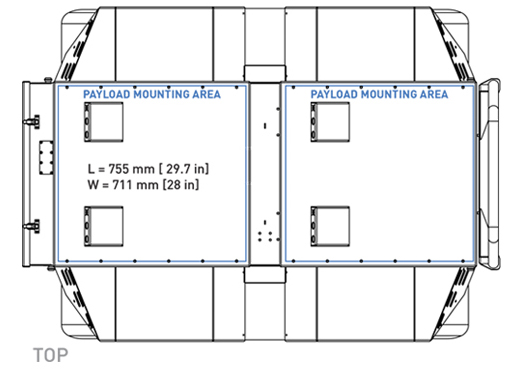

Size and Weight

Dimensions 1750 x 1282 x 811 mm (68.9 x 50.5 x 31.9 in)
  Curb Weight
A:Base
B: Heavy Duty
A: 910 kg (2000 lbs)
B:  660 kg (1450 lbs)
Max Payload 600 kg (1320 lbs)
Max Speed 19 km/h (12 mph)

Speed and Performance

Run Time
(Basic Usage)
12 hours
User Power 5V, 12V, 24V and 48V
IP Rating 65 (air inlet: IP 54)
Drivers and APIs ROS, C++ Library, Mathworks

Accessories

Configure a custom platform. Explore all Accessories.

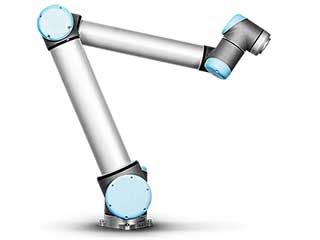

UR10

Universal Robots

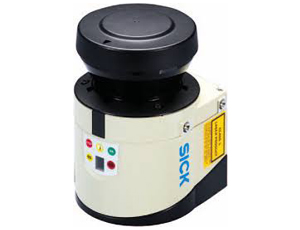

LMS-111 Lidar

SICK

SMART6-L GPS

NovAtel

3DM GX3-25

MicroStrain

Packages

The preconfigured packages offer everything needed to get started quickly. Don’t see what you’re looking for? Visit our full Accessories List.

Explorer Pack

The Grizzly Explorer Package provides all of the tools necessary for basic autonomous operation. Applications can range from GPS waypoint missions with laser-based obstacle detection and avoidance, to mapping and path planning. A powerful Mini-ITX computer system comes pre-installed with Linux and ROS; all component ROS drivers are installed and pre-configured for a better out-of-the-box experience.

Example Applications
Included Accessories
Featured Upgrades
Grizzly RUV exploration integration

Tractor Package

The Grizzly Tractor Package is designed for the most demanding payload and towing requirements. It includes a high-torque gearbox, 23 inch lugged tires for better traction, and eight additional batteries for increased runtime.

EXAMPLE APPLICATIONS
INCLUDED ACCESSORIES
FEATURED UPGRADES
Grizzly RUV tractor integration

Mapping Package

Equipped with a full suite of 3D mapping sensors, the Grizzly Mapping package provides the inputs necessary to create high fidelity 3D models in real time. Applications range from underground mine mapping to self-driving vehicle validation to planetary exploration research.

EXAMPLE APPLICATIONS
INCLUDED ACCESSORIES
FEATURED UPGRADES
Grizzly RUV mapping integration

Grizzly Manipulation

Transform Grizzly into a mobile manipulator with Universal Robotic’s rugged UR10 arm combined with the Robotiq 3 finger gripper and force-torque sensor. A special OEM UR10 controller is integrated inside Grizzly. Mounting, power and communication are provided along with support for MoveIt! (motion planner), RViz (visualization), and Gazebo (simulator).

Example Applications
INCLUDED ACCESSORIES
FEATURED UPGRADES
Grizzly RUV manipulation integration
